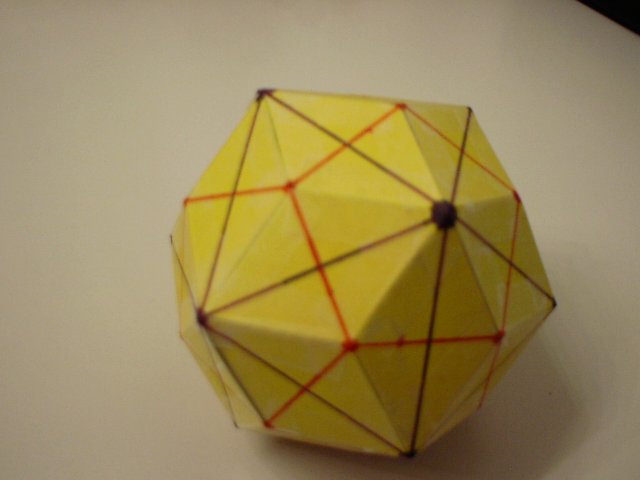

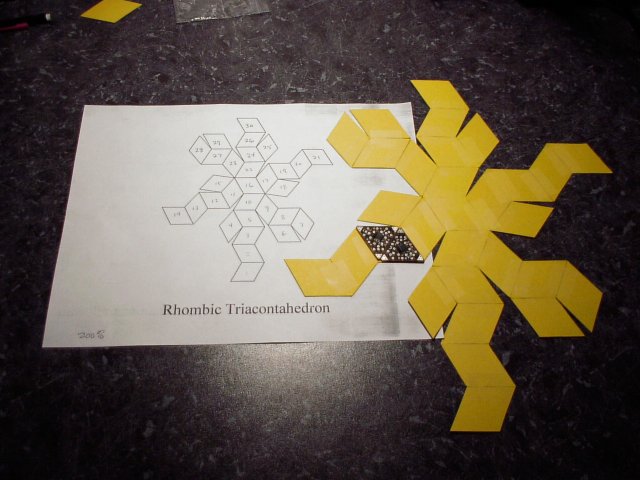

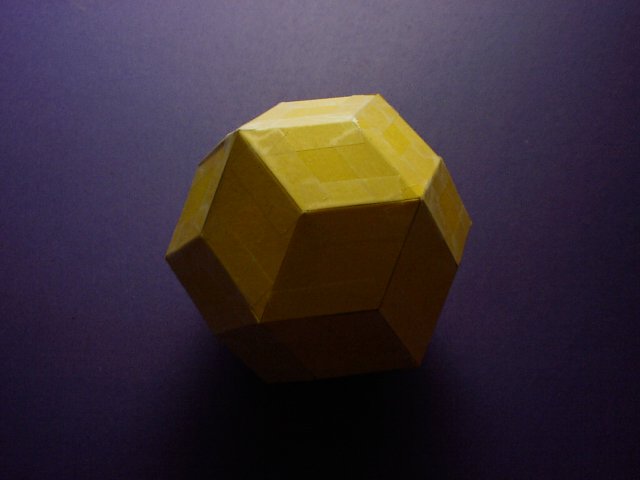

| Z-Borg is a Rhombic Triacontahedron, made from 30 rhombic polygon faces.
It is also known as a Zonohedron because within its geometry is the
Icosahedron and the Pentagonal Dodecahedron.
|
|
|
|
|

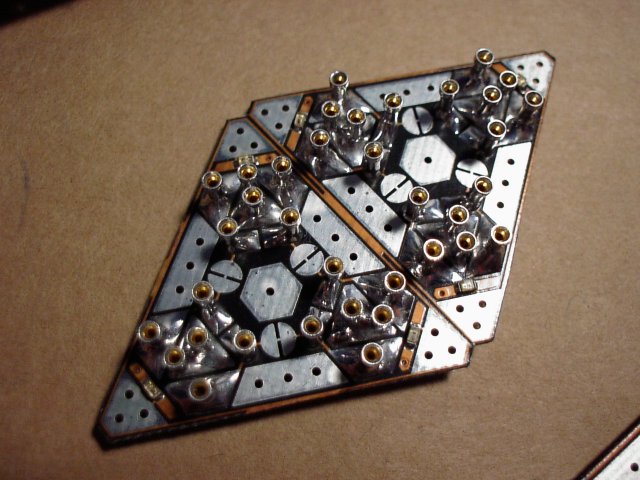

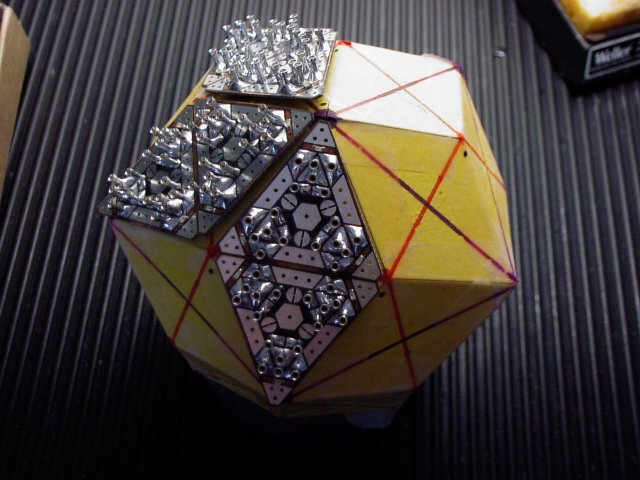

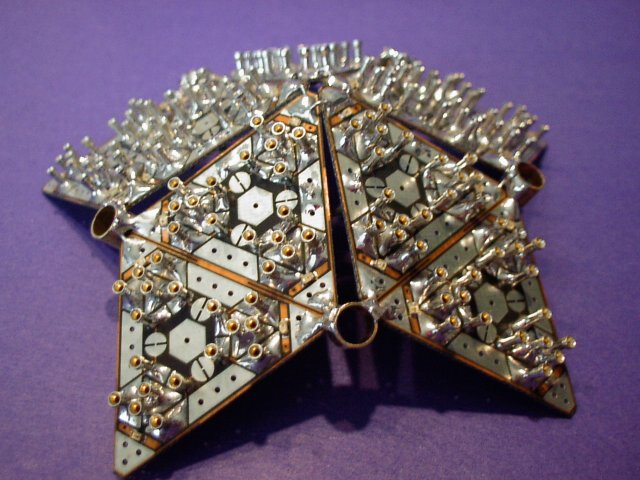

| For Z-Borg each rhombic polygon was made from 2 tricore tiles.
The width of the tricores are slightly less than the proper width
of a rhombic polygon so brass spacers were used to make up for this.
|
|
|
|
|

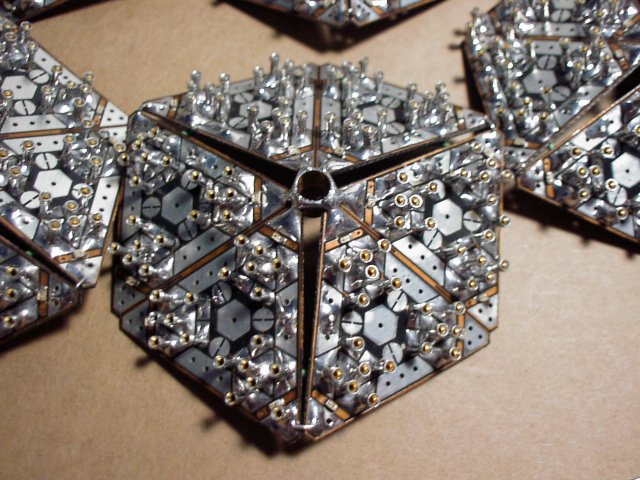

| Each input,output, and bias point, has two machined pins for connections
to other tiles. 30(rhombics) x 2(tricores) x 18 = 1080 machined pins.
Plus a few extra pins for Gnd and V+.
|
|
|
|
|

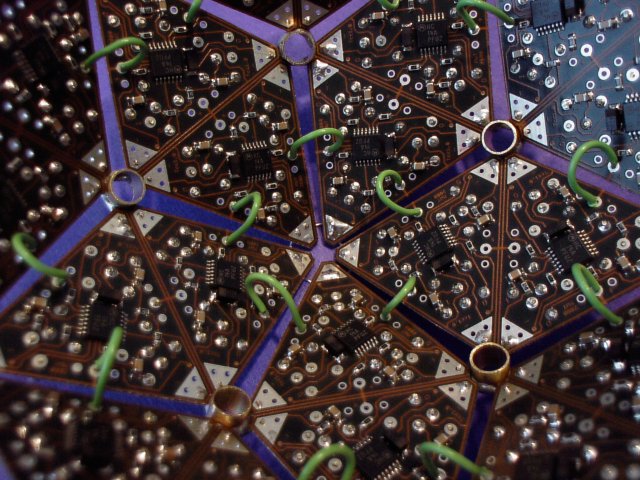

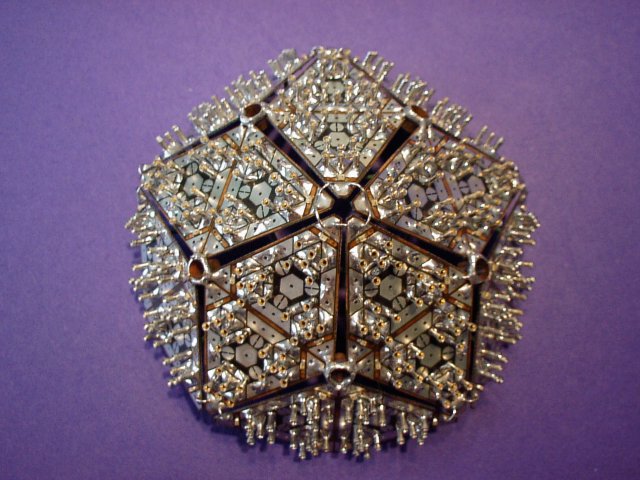

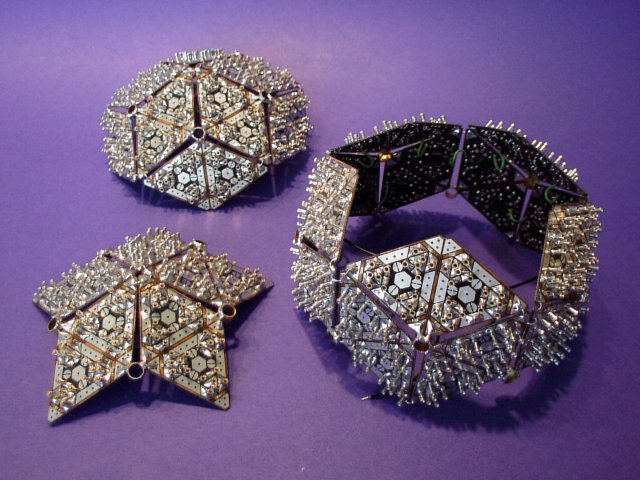

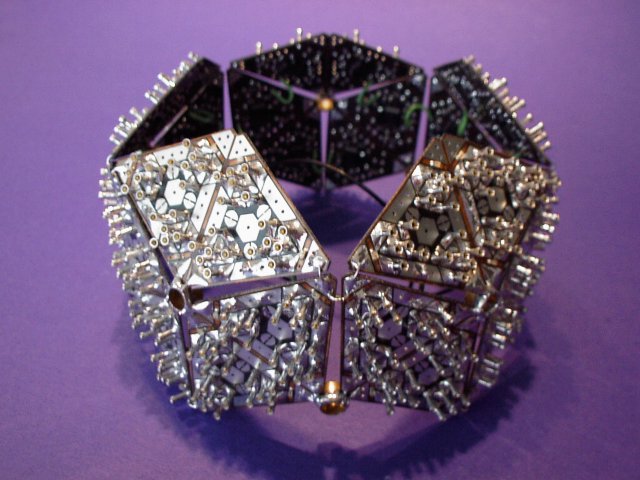

| Z-Borg had to be built in three sections in order to remove it from the
form before final assembly. Also, all V+ connections had to be jumpered
to distribute the power around the Borg. |
|
|
|
|

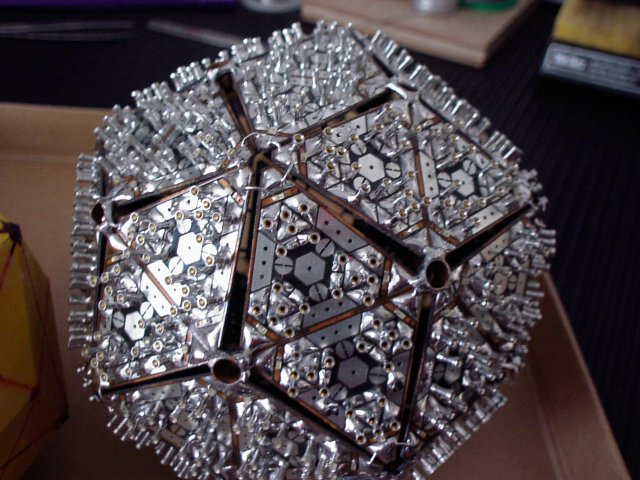

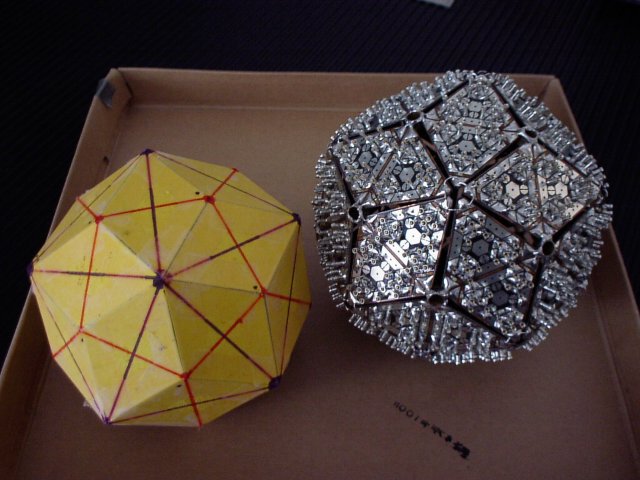

| The final assembly went very smooth, everything lined up near-perfect.
The brass spacers helped the sections come together.
|
|
Even after testing each tile at various stages during the build process,
one tile was dead-on-arrival and needed to be replaced, which was actually
quite painless to do.
|
